TP-Link VIGI NVR1016H 16 csatornás hálózati videó rögzítő
- Cikkszám: 351420
- Gyártó cikkszám: VIGI NVR1016H
- Gyártó: Tp-link
-
Elérhetőség:
3 db raktáron
-
Saját készlet:
Rendelhető
-
Beszállítói készlet:
3 db raktáron
- Szállítási díj: 2.350 Ft
-
Termékfülek
Leírás
| Video and Audio | |
| IP Video Input | 16-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4/6/8/9/16 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Live View/Playback Resolution | 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/ |
| 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Synchronous Playback | 16-Channel |
| Capability | 1-ch @ 8 MP, 2-ch @ 4 MP, 4-ch @ 2 MP |
| Record Management | |
| Record Mode | • Manual Recording |
| • Scheduling Recording | |
| • Motion Detection Recording | |
| Playback Mode | • Instant Playback |
| • Regular Playback | |
| • Tag Playback | |
| • Event Playback | |
| Backup Mode | • Regular Backup |
| • Video Clip Backup | |
| Playback Function | • Play |
| • Pause | |
| • Stop | |
| • Fast Forward | |
| • Fast Backward | |
| • Play By Frame | |
| • Full Screen | |
| • Video Clip | |
| • Export Clip | |
| • Digital Zoom | |
| • Lock Recording | |
| • Audio On/Off | |
| Hálózat | |
| Szabvány | TCP/IP, DHCP, DNS, NTP, UPnP |
| Mobile Phone Access | Android, iOS |
| Incoming Bandwith | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGI |
| External Interface | |
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2× USB 2.0 |
| Audio Interface | 1, Audio In; 1, Audio Out |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
| SATA | 1 SATA Interface |

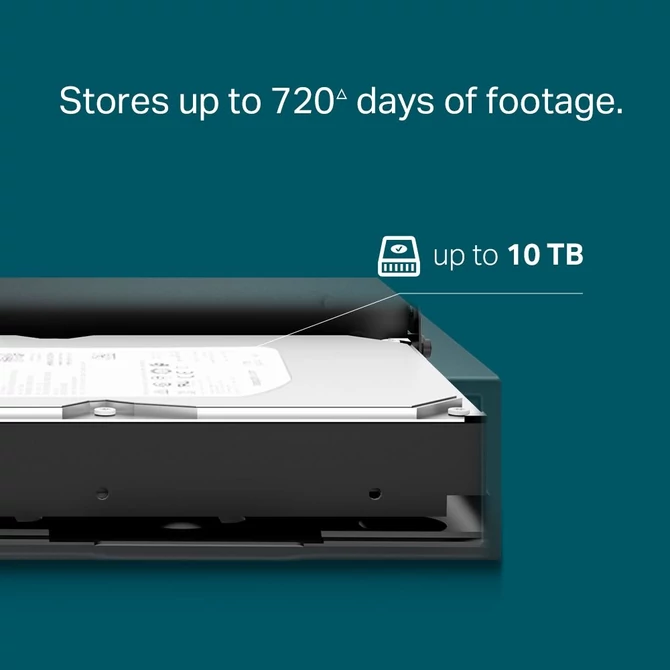

| Capacity | Up to 10 TB |
| Alarm | |
| General Alarm | • Motion Detection |
| • Video Tampering | |
| • Line-Crossing Detection | |
| • Intrusion Detection | |
| • Region Entering Detection | |
| • Region Exiting Detection | |
| • Object Abandoned/Removal Detection | |
| • Vehicle Detection | |
| • Human Detection | |
| Anomaly Alarm | • Video Loss |
| • Offline and IP Conflict | |
